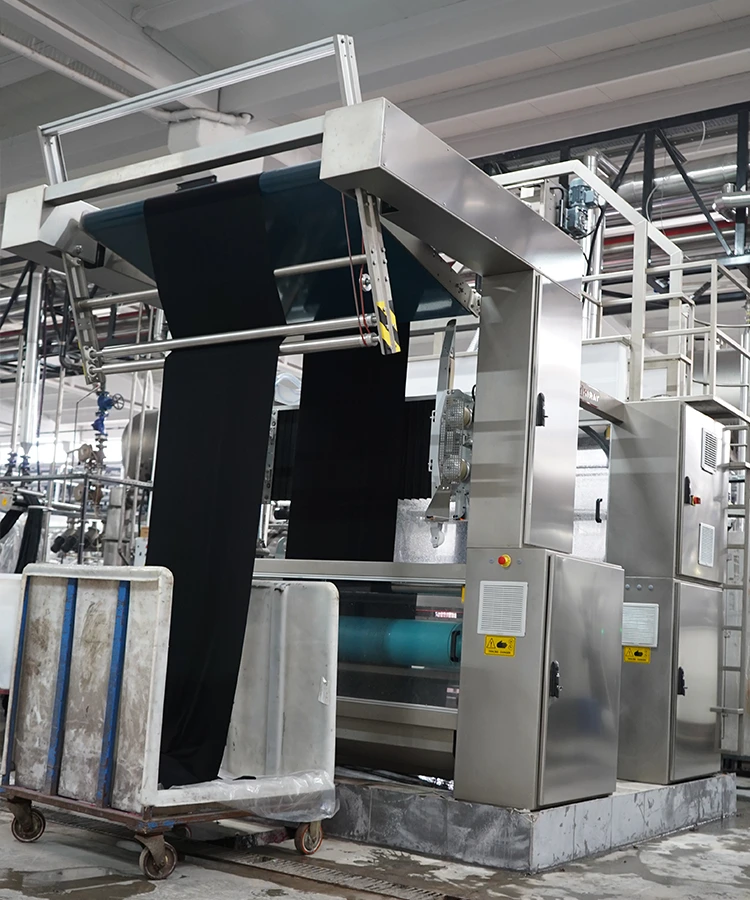

Tubular Squeezing Machine, whose design and production is completely owned by KIRAY MAKİNA, creates serious differences in pure performance and efficiency values to its closest competitors. Meticulousness in the quality of the material and production stages increases the lifetime of the machines and minimizes the operating costs. It has programmed by our own engineers.

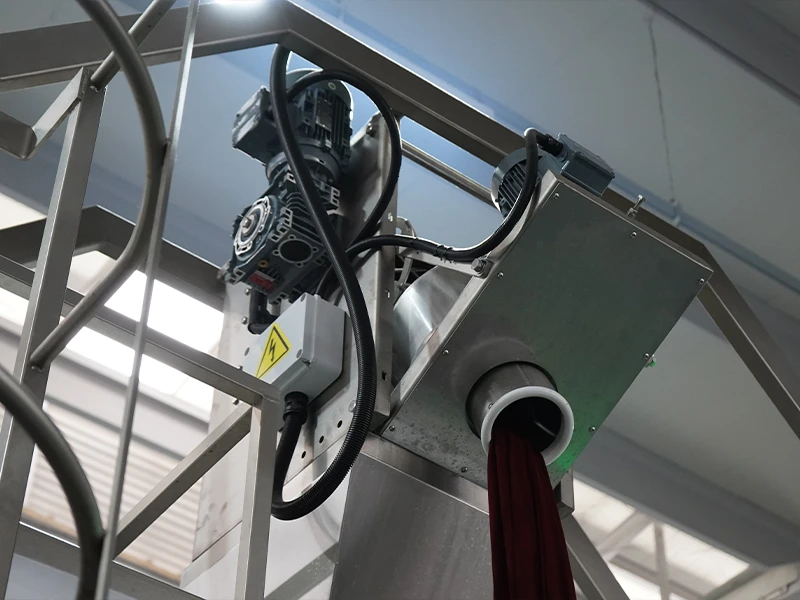

Its precise and rapid response capability. Owing to its superior design, its success in reading the auger direction in addition to the minimized maintenance requirement directly affects the maximum speed of the machine.

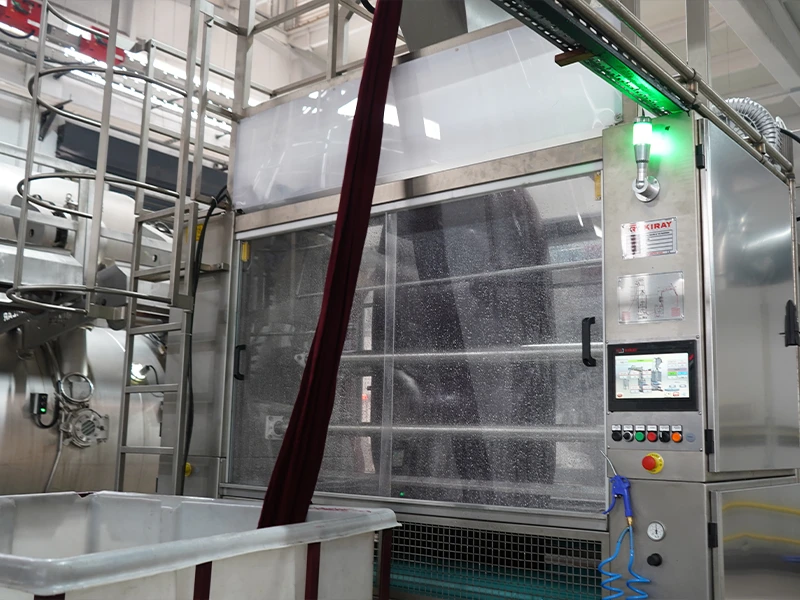

Ballerina tension control cylinders, spinning rollers and foulard cylinders 90-95 sha hardness and padder camber is Ø0,55mm introduction module, consisting of these cylinders, are perfectly compatible with these hardwares and unique software. With perfect synchronization, it reduces the shrinkage value of the fabric to 5% and its tension to 0%.

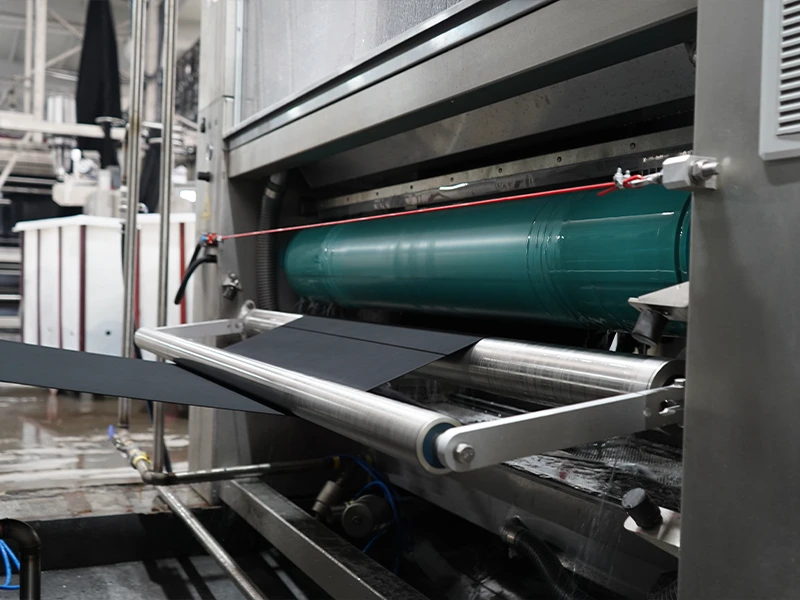

The rubber covered foulard cylinder with Ø240mm - 1500mm dimensions, 80-85 shore hardness and Ø0.45mm camber diameter, driven by 3 KW motor power, plays an important role in removing the excess of the chemical finishing agent with a soft squeezing process

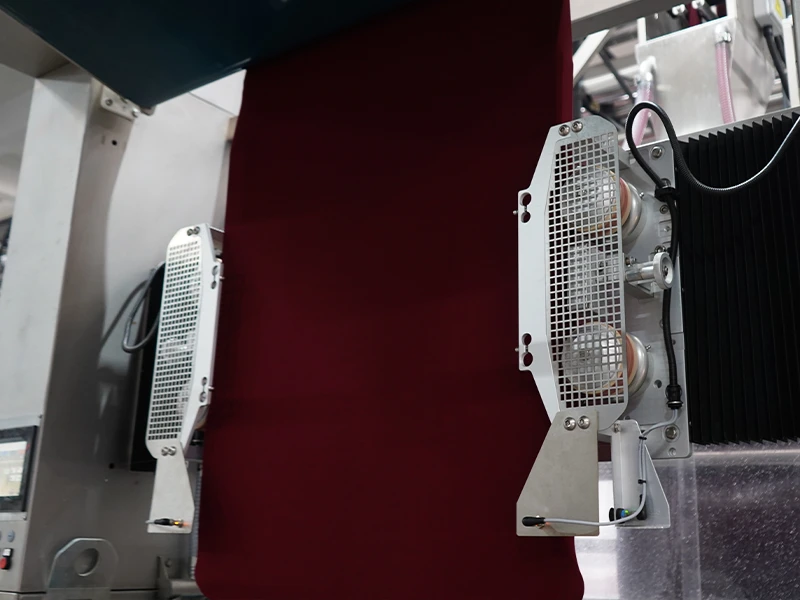

It provides width adjustment with its structure providing fabric tension control.

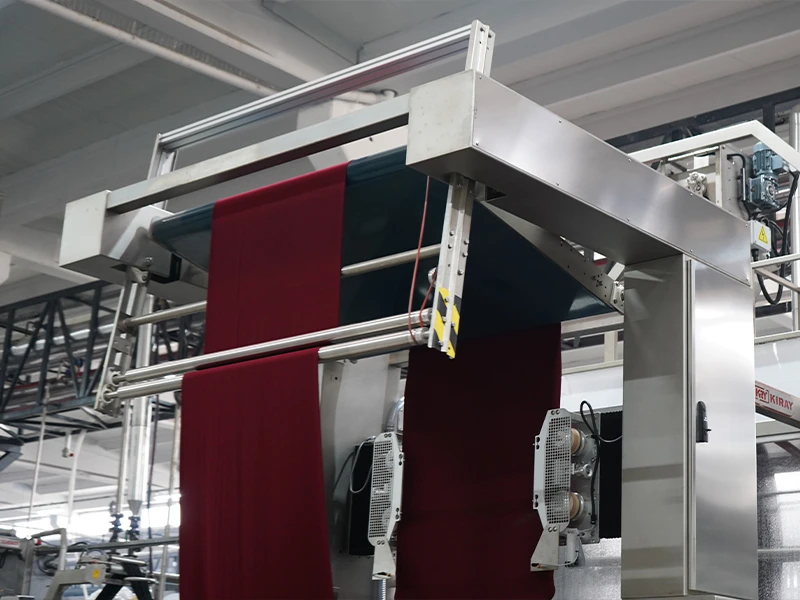

The exit module which works as a folding works synchronously with the whole machine. For more effective and tensionless operation, this unit is equipped with a 1600mm wide PVC conveyor belt driven by drafting rollers
| Rollers Width & Fabric Width | 1600 mm & 1400 mm |
| Working Width | 350 - 1400 mm (1400 mm Fabric) |
| Max. Mechanical Speed (Stretcher & Without Stretcher) | 60 m/min. & 80 m/min. |
| Voltage | 380V-50/60Hz - 3P+GND |
| Installed Power & E. Consumption | 20 kW & 13 kWh |
| Water Consumption | 1,5 m3/h |
| Working Air Pressure | 6-8 Bar |
| Squeezing Pressure | 2-6 Bar |
| Squeezing Rollers | Ø240 mm Rubber Coating |
| Squeezing Padder | 90-95 Shore A & 30 kg/cm2 |
| Impregnation Padder | 80-85 Shore A & 20 kg/cm2 |
| Stretcher Type | * Permanent Magnet / Ferraro / 3 pcs. Motor * The Fabric Is Damaged Sensor * %25 Fabric Overfeed |
| Chemical Preparing Tank | * 200 lt AISI 304 Chemical Tank * Dosing System with Level Control |
| Dimension | 2610 X 5840 X 4330 mm W X L X H |
| Weight | 4000 kg |
| Material | AISI 304 Stainless Steel |
| Teleservice | Standart Feature |
