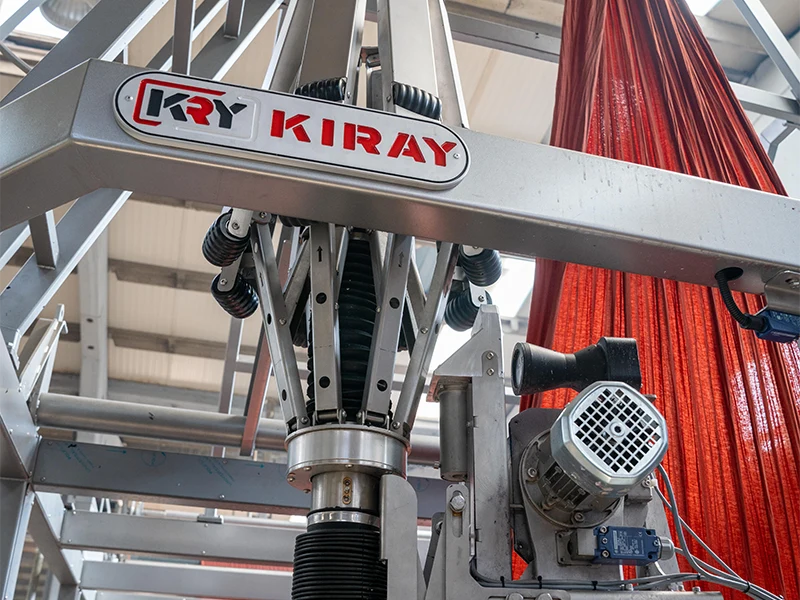

Cutting Unit with Basket
İz-1881®
Automatic fabric cutting with the Camera-Based May Tracking System.
.png){kind=small}

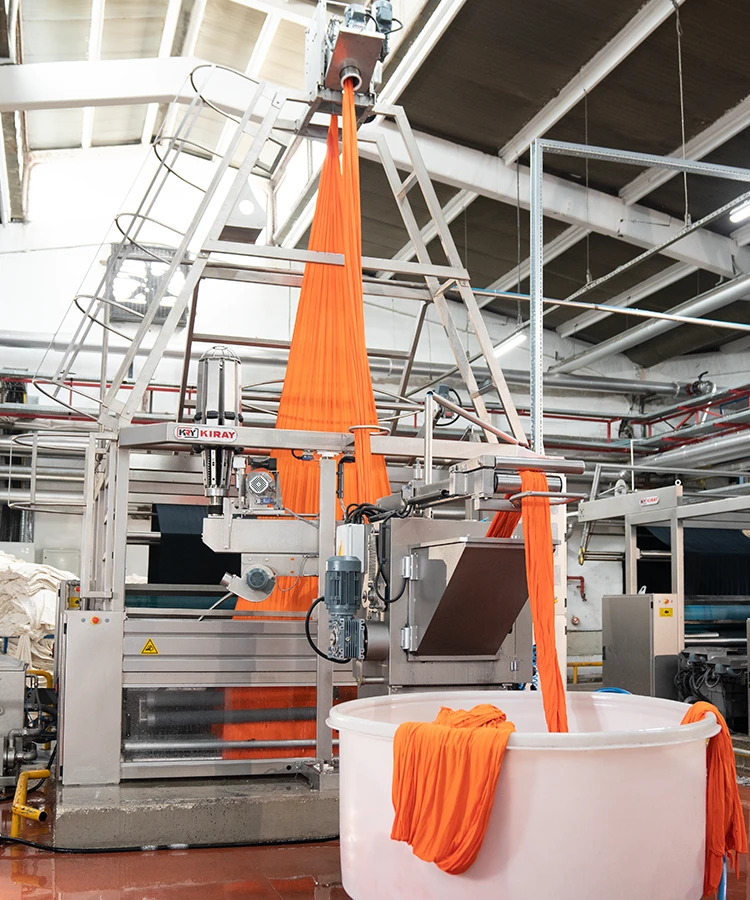

Tubular Slitting Machine, whose design and production is completely owned by KIRAY MAKİNA, creates serious differences in pure performance and efficiency values to its closest competitors. Meticulousness in the quality of the material and production stages increases the lifetime of the machines and minimizes the operating costs. It has programmed by our own engineers.

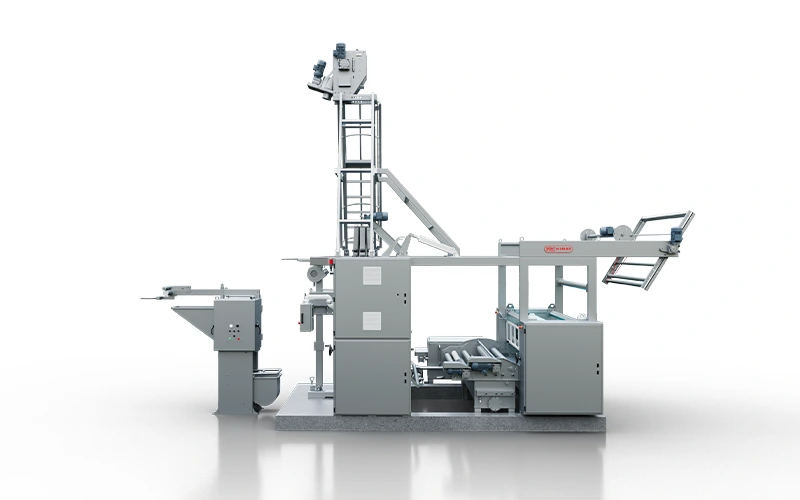

A fast and high-performance machine that converts rope-form fabric into an open-width form without tension or damage to the fabric.
Open Width Machine Speed: 125m/min
Tubular Slitting Machine Speed: 100m/min
Automatic fabric cutting with the Camera-Based May Tracking System.

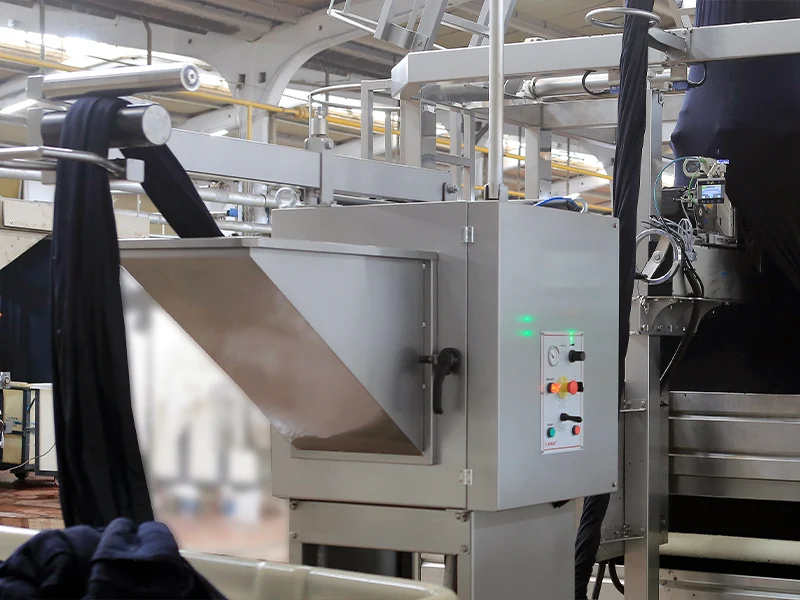

Sensitive and effective pre-pressing with a pressure value of 60-65 Shore Automatic rope diameter and breakage measurement.
Precise, effective, and seamless centering with the Kıray Makina CNK 1915 centering system.
A fast and high-performance machine that opens ropeform fabric without tension or damage to the fabric.

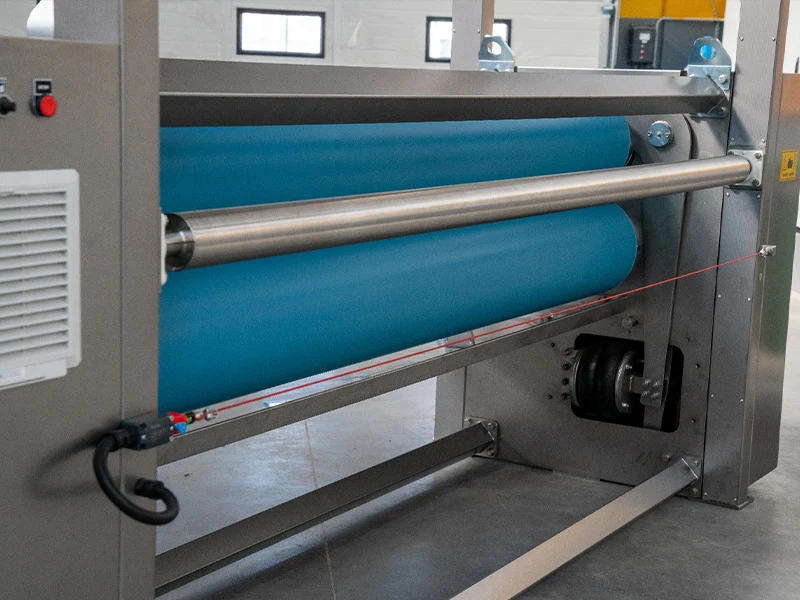

With a scarf coating of 90-95 Shore hardness and a pressing pressure of 40 kg/cm²

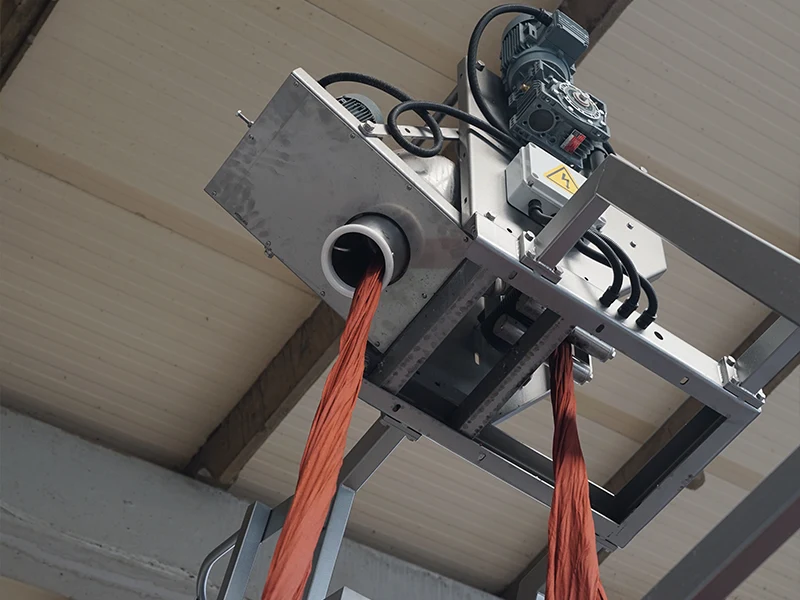

Shaking and spreading operation with a single button

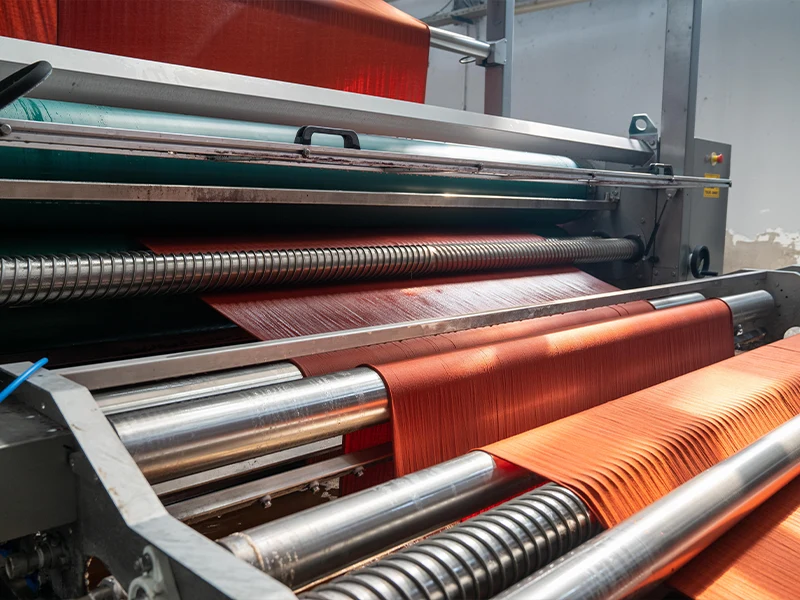

2 or 3 dipping options.
| Machine Width & Cylinder Width | 2000 - 3600 mm & 1800 - 3400 mm |
| Working Width | 1600 - 3200 mm |
|
Max. Mechanical Speed (Open Width & Tube Fabric) |
125 M/Dk. & 100 M/Dk. |
| Voltage |
380V-50/60Hz - 3P+GND |
| Installed Power & E. Consumption |
25,0 kW & 11,0 kWh |
| Water Consumption |
10 ton/day |
| Working Air Pressure | 6 - 8 Bar |
| Squeezing Pressure | 1 - 6 Bar (4-20 mA IP Converter Controlled) |
| Squeezing Rollers | Ø320 mm Rubber Coating 90-95 Shore A & 40 kg/cm2 |
| Drive Rollers | Ø168 mm with Wrap Tape |
| Rope Padder | Ø205 mm Rubber Coating 65 Shore A & 12 kg/cm2 |
| Tension Control System | Loadcell Control |
| Automation Systems | Schneider / Lenze |
| Pnomatic Systems | SMC / Festo |
| Dimension | 4670 x 8565 x 5910 mm & E X B X Y (2400 mm Fabric Width) |
| Weight | 6000 kg (2400 mm Fabric Width) |
| Material | AISI 304 Stainless Steel |
| Teleservice | Standard Feature |
| Machine Code | A | B | C | D | E |
| FTK22 | 2200 | 2470 | 2900 | 4040 | 1220 |
| FTK24 | 2400 | 2670 | 3100 | 4240 | 1320 |
| FTK26 | 2600 | 3870 | 3300 | 4440 | 1420 |
| FTK28 | 2800 | 3070 | 3500 | 4640 | 1520 |
| FTK30 | 3000 | 3270 | 3700 | 4840 | 1620 |
| FTK32 | 3200 | 3470 | 3900 | 5040 | 1720 |
| FTK34 | 3400 | 3670 | 4100 | 5240 | 1820 |
| FTK36 | 3600 | 3870 | 4300 | 5440 | 1920 |
