Spray Unit

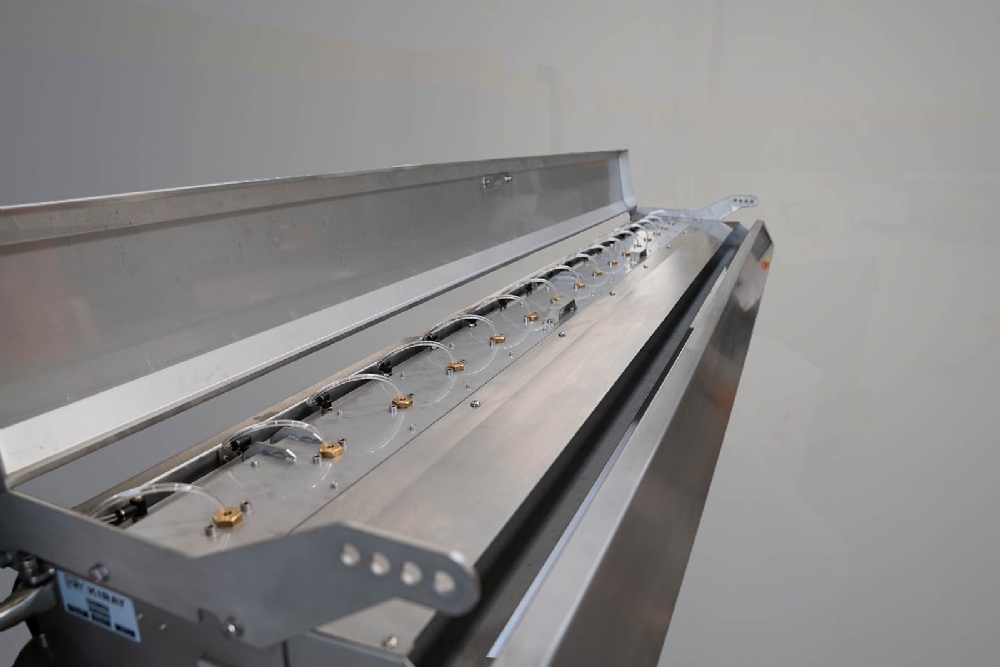

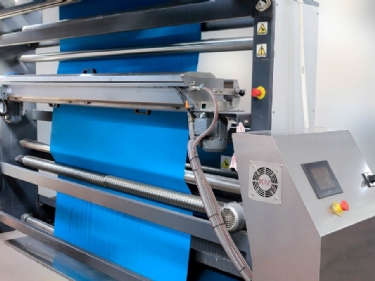

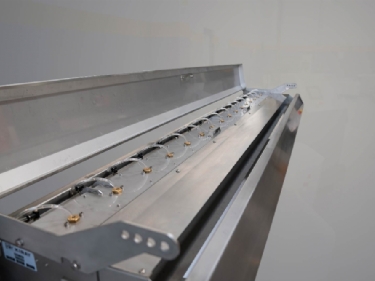

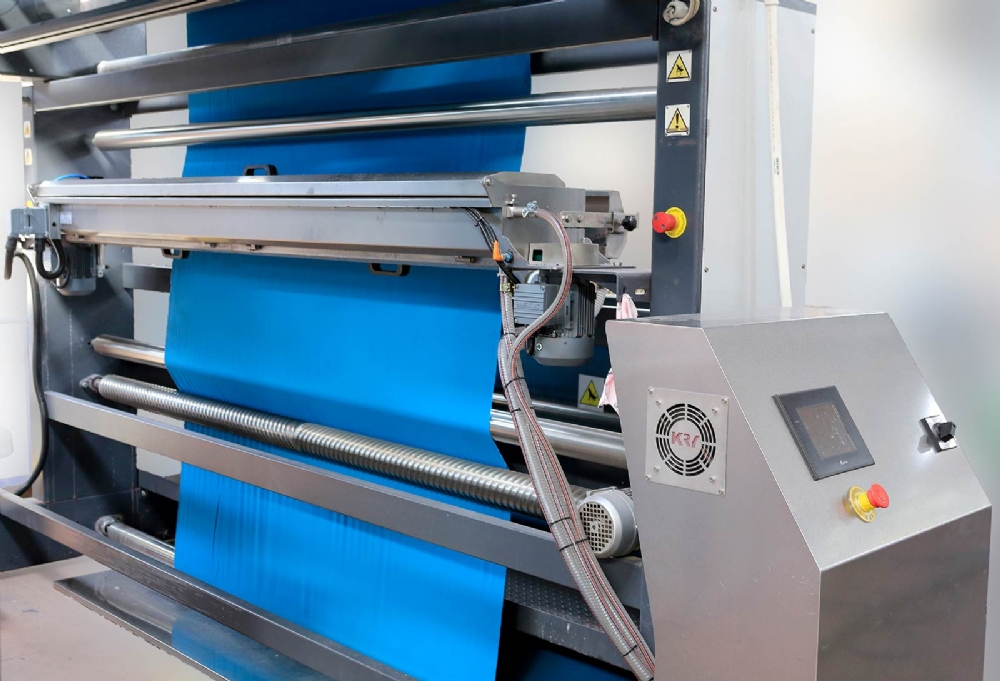

It can be easily applied to machines such as any brand of stenter, sanforizer, packaging, quality control and finishing machine. Our product, which regains its natural moisture lost during finishing, helps to maintain the surface quality of the fabric by creating a decent touch. The unit, which operates with the rotating plates manufactured with stainless high quality bearings and which operates with the principle of water spraying, has a long life with its material quality. It is designed for simple usage and structured according to the wishes of the user, and its easy of use and adjustment is provided. In case of errors and malfunctions that may occur with the help of the sensors used, the alarm menu warns the user with the warnings such as “no water”, “belt broken” and “inverter failure”.

Spray Unit

GENERAL FEATURES

  • Compatible with every brand of ram, stenter, packaging, quality control, and finishing machines
  • Creates a high-quality, soft touch on the fabric surface by restoring the required humidity
  • Perfectly designed, non-clogging rotary plate nozzle
  • Homogeneous fabric humidification
  • Pulverized water spray to prevent water drop stains on the fabric
  • Adjustable humidity level setting
  • Water level measurement and warning system

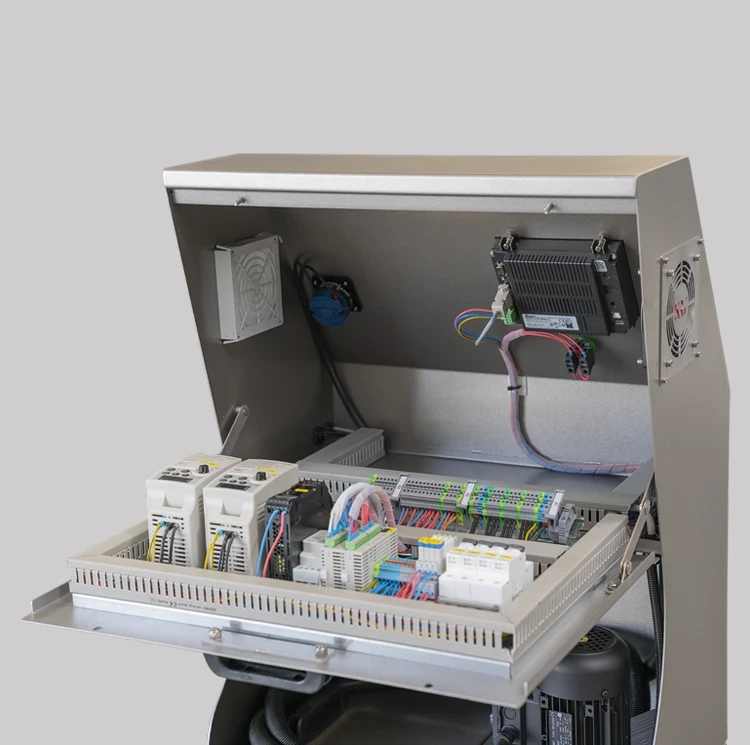

  • Operator-friendly user panel and interface with fault and warning notifications
  • Easy and practical maintenance with a customer-oriented design
GENERAL FEATURES

TECHNICAL SPECIFICATIONS

SPRAY UNIT
ELECTRIC INPUT VOLTAGE 230 V AC /380 V AC - 50Hz/60 Hz
CONTROL VOLTAGE 24V DC
INSTALLED POWER 7,5 KW
HUMIDIFICATION RATE %1 – %10
WORKING AIR PRESSURE 4 – 8 BAR
NUMBER OF NOZZLE 5 – 23 PIECE
OPERATING TEMPERATURE 5 – 60° C
BODY MATERIAL AISI 304 STAINLESS STEEL
MACHINE WEIGHT  120 KG

UNITS

SUPERIOR QUALITY, HIGH EFFICIENCY
