Fabric Centering Unit
Manufactured with the highest quality materials, this product perfectly grips the fabric with various coating materials and specially designed slats, keeping it consistently centered with the CNK 1915 sensor.
.png){kind=small}

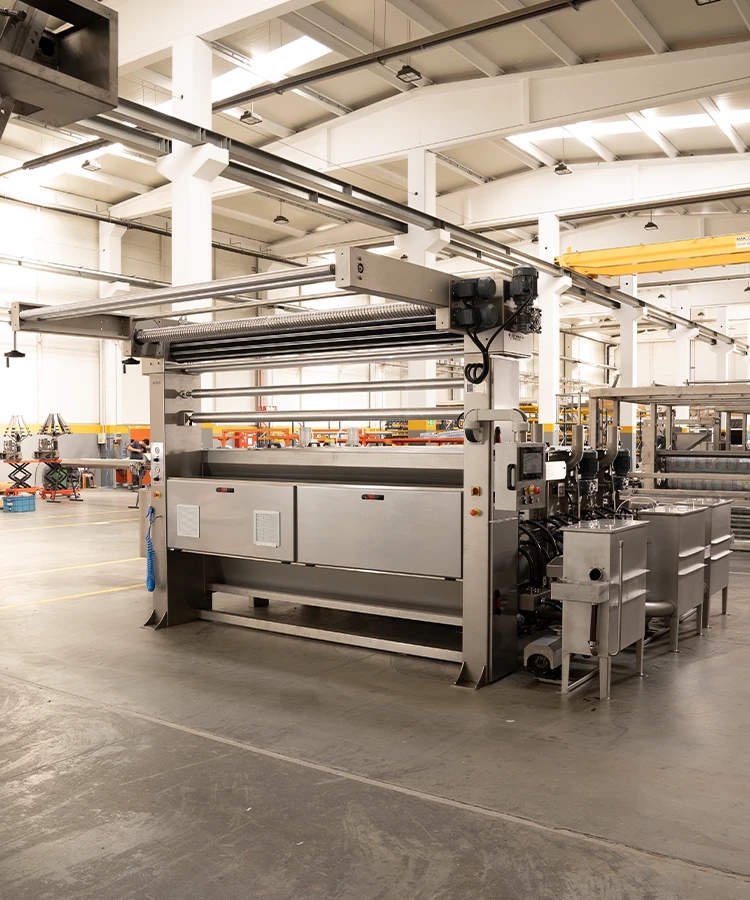

For Knits and Woven fabrics; has been produced for removing of paraffins, natural cotton oil, polyester fabrics oil, and other particulars which comes from yarn. ROY1919® Scouring Machine decrease the negative impact for enviroment and to the consumption of water, steam, and electric, under name of “Clean Production Technology” which is produced and designed by KIRAY Engineers.
The stenter front washing system, with a separate tank and independent nozzle structure, is an effective and efficient machine for removing oil and foreign substances from fabric.
Suitable oil-removing chemicals are used to enable the oils on the fabric to transition into the liquid phase.

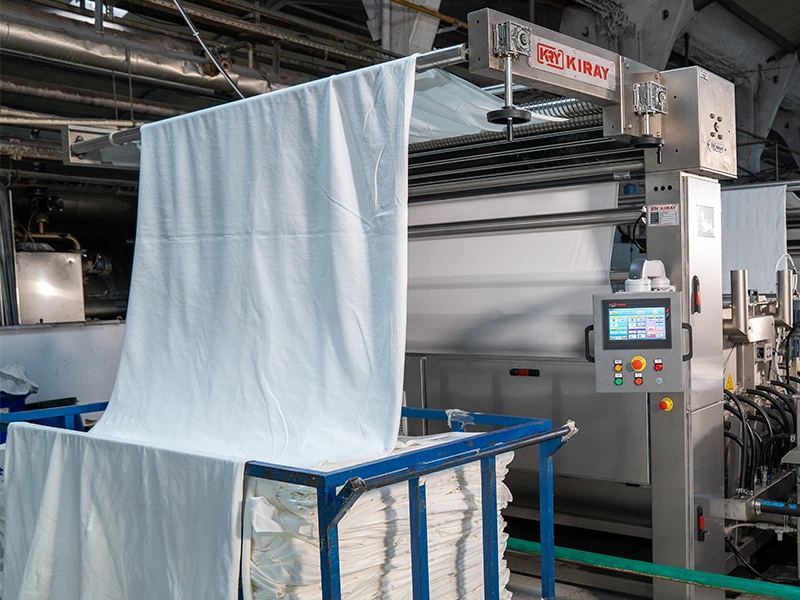

Manufactured with the highest quality materials, this product perfectly grips the fabric with various coating materials and specially designed slats, keeping it consistently centered with the CNK 1915 sensor.

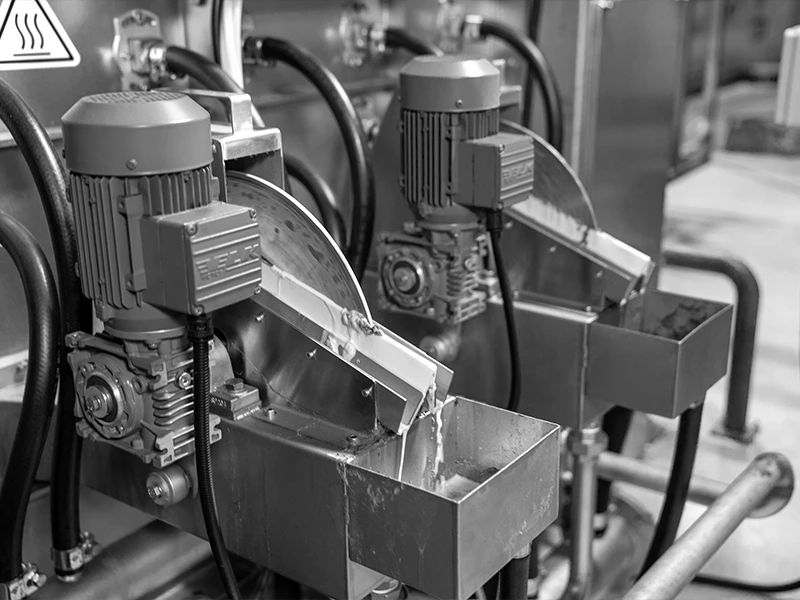

During washing, it takes the dissolved oil and paraffins out from the water by rotaring disc.

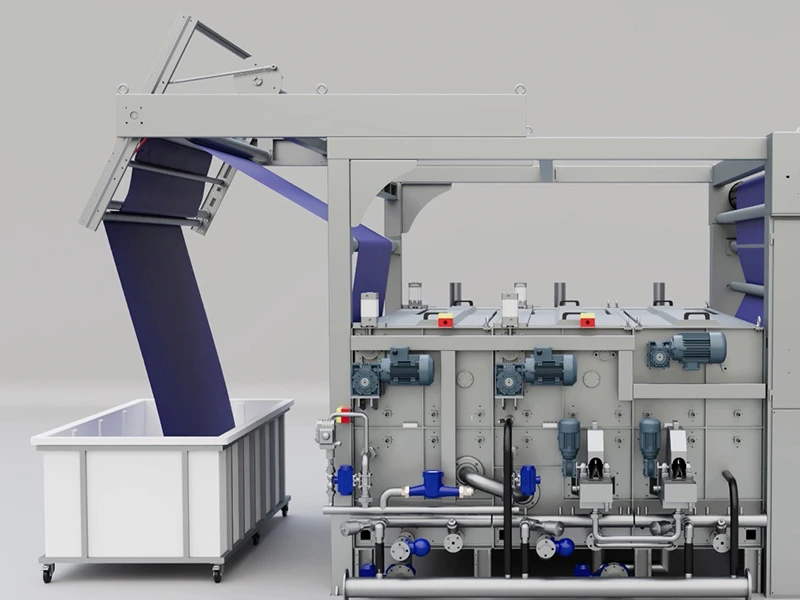

The output module with a shaking and J-box system offers the option to operate either synchronously with the stenter or independently when needed.

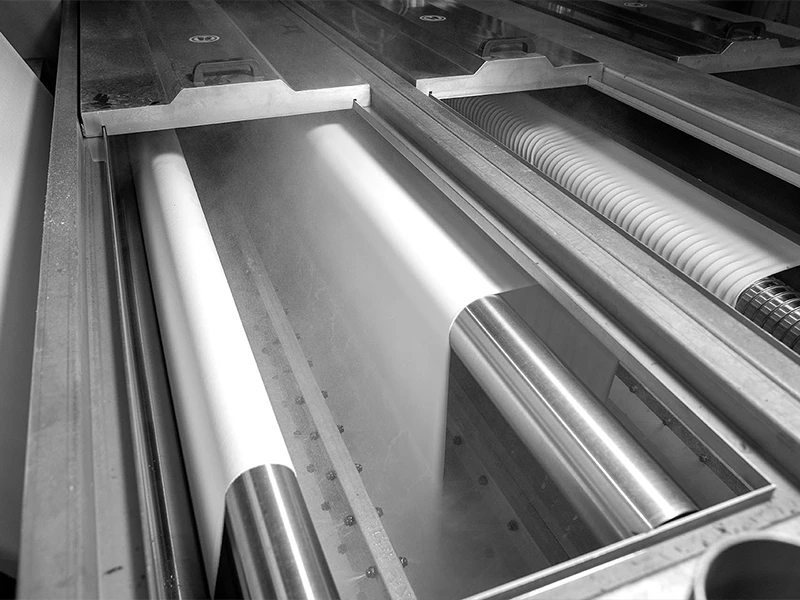

The ROY 1919 structure ensures effective and continuous washing with a total of 528 nozzles.

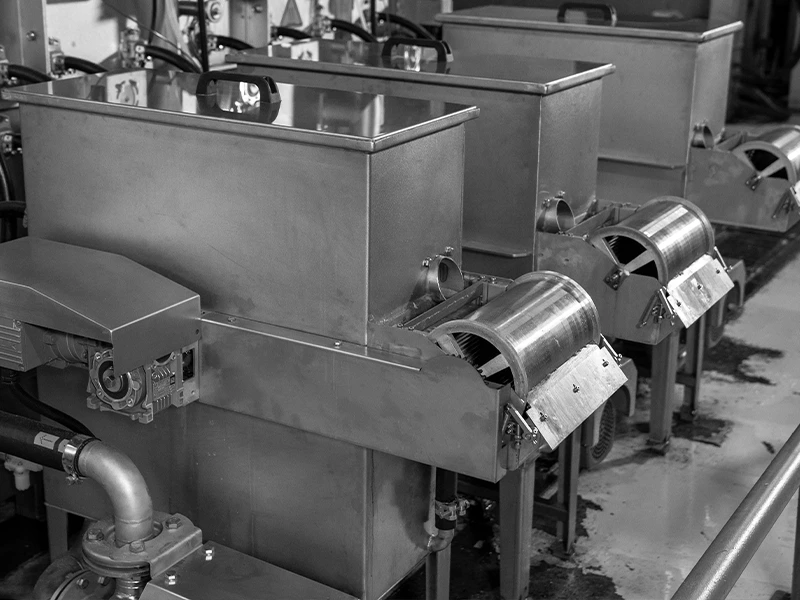

With its patented Turbo filter design, the closed system recycles the washing water for repeated use.
| Machine Width & Cylinder Width | 2000 - 3600 mm & 1800 - 3400 m |
| Working Width | 1600 - 3200 mm |
| Max. Mechanical Speed | 5-60 m/min |
| Voltage | 380V-50/60Hz - 3P+GND |
| Installed Power | 20,0 Kw |
| Water Consumption | 1,2-2 lt/kg |
| Working Heat | 5-98 C° |
| Tension Control System | Loadcell Cylinder |
| Automation Systems | Schneider / Lenze |
| Pneumatic Systems | SMC / Festo |
| Dimensions |
4886 x 4783 x 2708 mm & E X B X Y (2400 mm Fabric Width) |
| Weight | 5000 kg (2400 mm Fabric Width) |
| Body | AISI 304 / AISI 316 |
| Remote & Technical Service | Standart Feature |
