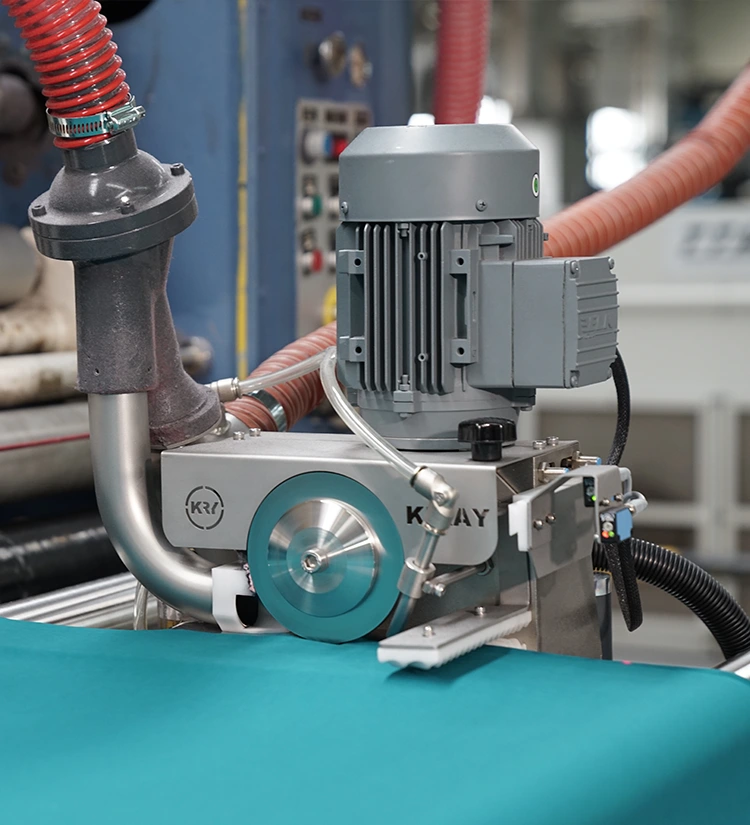

Edge Cutting Unit

Designed and produced entirely by KIRAY MAKİNA, the Scalloped Edge Cutting Machine creates serious differences in performance and efficiency values even to its closest competitors. The quality of the material used and the meticulousness in the production stages increase the lifetime of the machines, while minimizing the operating costs. Computerized control panels on the system are programmed by KIRAY MAKİNA.

GENERAL FEATURES

Compatible with every brand of stenter and sanfor machines
Excellent efficiency with a low-power blower owing to a special waste fabric suction structure
Capability of cutting any type of fabric
Adjustable edge cutting width
Perfect edge spreading with specially designed combs before cutting
Long-lasting disk blades developed through metallurgical engineering and thermal processes
Perfect cutting angles determined by engineering studies
Automatic lubrication system with time adjustment for blades
Precise fabric edge tracking with sensors

TECHNICAL SPECIFICATIONS

EDGE CUTTING UNIT

MINIMUM CUTTING WIDTH	5 mm
ELECTRIC SUPPLY VOLTAGE	220 V AC / 3800 V AC - 50Hz/60 Hz
CONTROL VOLTAGE	24V DC
MOTOR POWER	0,37 KW
BLOWER MOTOR POWER	3 KW
MAX WORKING SPEED	65 m/min
OPERATING TEMPERATURE	5 – 60° C
BODY MATERIAL	AISI 304 STAINLESS STEEL
UNIT WEIGHT	80 Kg (INCLUDING PANEL, RIGHT AND LEFT UNIT)
